  • Agriculture water supply HDPE pipe Fittings PP compression fittings
Agriculture water supply HDPE pipe Fittings PP compression fittings

Agriculture water supply HDPE pipe Fittings PP compression fittings

  • Product Item : SGF9000
  • Category: PP Compression Fittings
  • Views:1053
  • Main Material:PP
  • Color:Black,Green,Blue or Customzied
  • Size:16 to 110mm
  • Working Pressure:PN10
  • Connection:Thread & Socket
  • Standard:DIN & BSPT
  • Product description:Agriculture water supply HDPE pipe Fittings PP compression fittings
  • Enquire online

Agriculture water supply HDPE pipe Fittings PP compression fittings

Product Description

Main Material
PP
Color
Black, Green , Blue or Customzied
Size

16 to 110 mm

1/2" to 4"

Working Pressure
PN10
Connection
Thread & Socket
Standard
DIN & BSPT

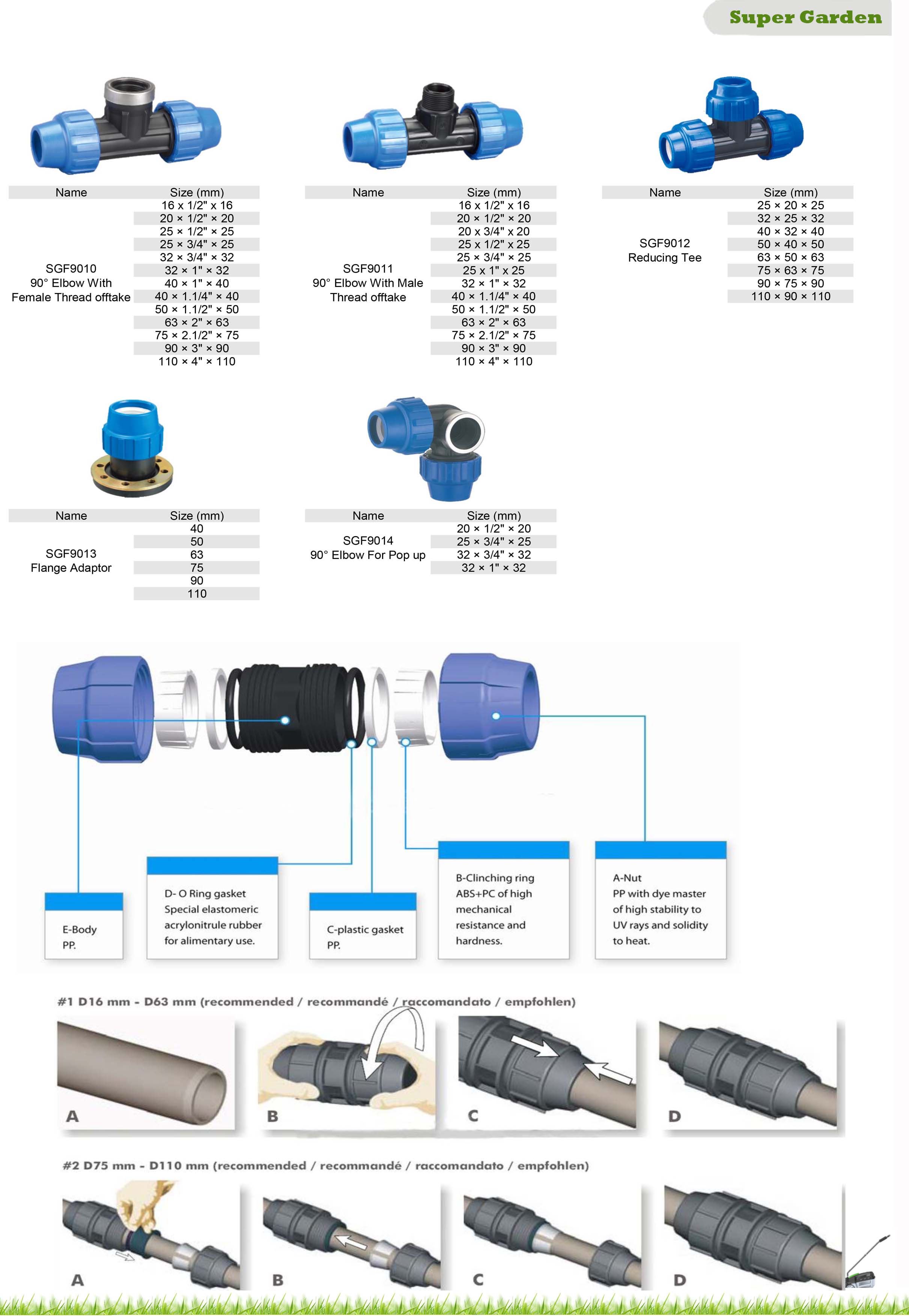

Material List


Part

Material
Color

Body

Polypropylene block copolymer (PP-B) of exceptional mechanical properties even at high Temperature
Black
Nut
Polypropylene with dye master of high stability to UV rays and solidity to heat (8 grade according to standard DIN 54004)
Blue, Green or Customzied
Clinching Ring
Polyacetal resin (POM) with high mechanical resistance white and hardness
White
Blocking Bush
Polypropylene
Black
O Ring Gasket
Special elastomeric acrylonitrile rubber (NBR) for alimentary use
Black
Reinforcing Ring
AISI 430 (UNI X8Cr17,W.nr 14828) Stainless steel for female threads for 1/2" to 4"
Sliver
